Gas turbine
6B gas turbine
Its ability to operate in island mode, coupled with multiple decades of proven rugged performance, make the 6B an excellent solution for remote installations and extreme operating conditions. The rugged, reliable 6B heavy-duty gas turbine is a popular choice for refineries, natural gas liquefaction power, CHP applications, and industrial power.
6B gas turbine features and benefits
World-class performance and dependability
With more than 1,200 6B units installed since 1978, the world has come to trust its dependability.
Leading fuel flexibility
Since it can be operated on a wide range of gas or distillate liquids, the 6B gas turbine allows for the use of the most economically available fuel. Standard combustion supports heavy oils, naphtha, bioethanol, methanol, synthetic gases, and steel mill gases and capable of up to 100% hydrogen, or heavy fuel oil with up to 200 ppm vanadium. DLN combustion supports low-cost gas and liquid fuels, including process gases, low calorific gases, and up to 30% hydrogen, 50% ethane, 100% propane, and 50% nitrogen.
Easy installation
Standardized architecture and pre-assembled packaging with accessories allow for a delivery cycle of close to 10 months from contract signature to commercial operation.
Built for anywhere
The 6B gas turbine was created for extreme conditions—it can handle multiple startups, can operate in island mode, and even features black start capability for volatile grid environments. Its proven technology makes it well-suited for a wide range of applications—from simple-cycle operation to cogeneration, and combined-cycle to mechanical drive. The 289 MMBtu/hr exhaust energy at 549˚C can generate a high quantity of steam with pressure up to 110 bar for industrial steam without supplementary firing.
Reliable power for a variety of applications

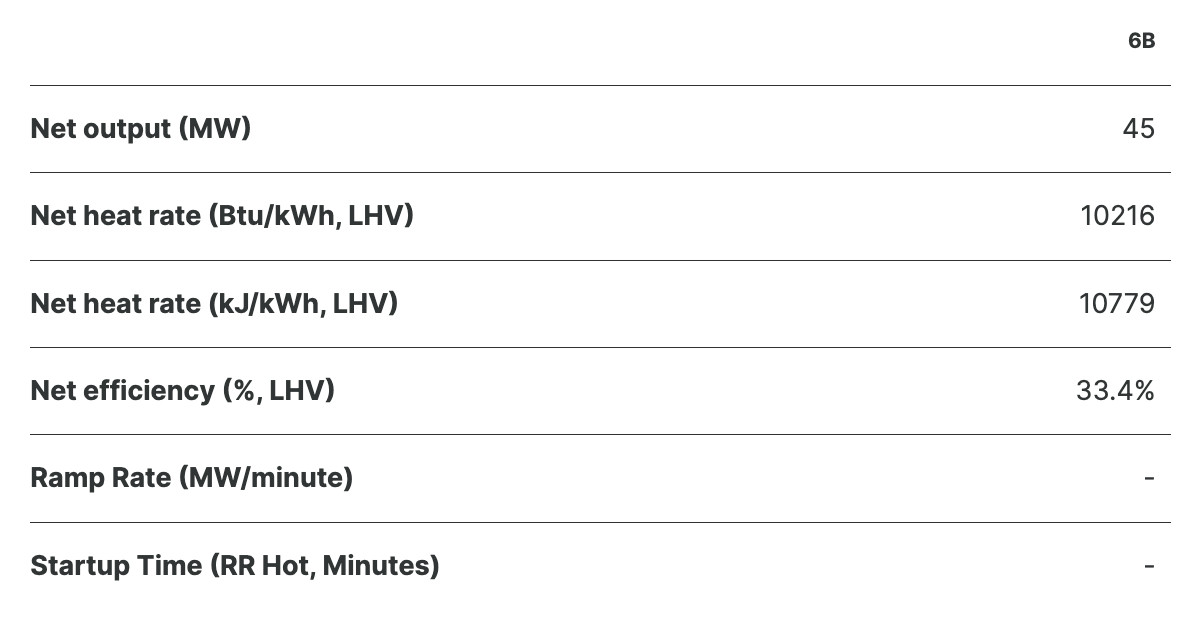

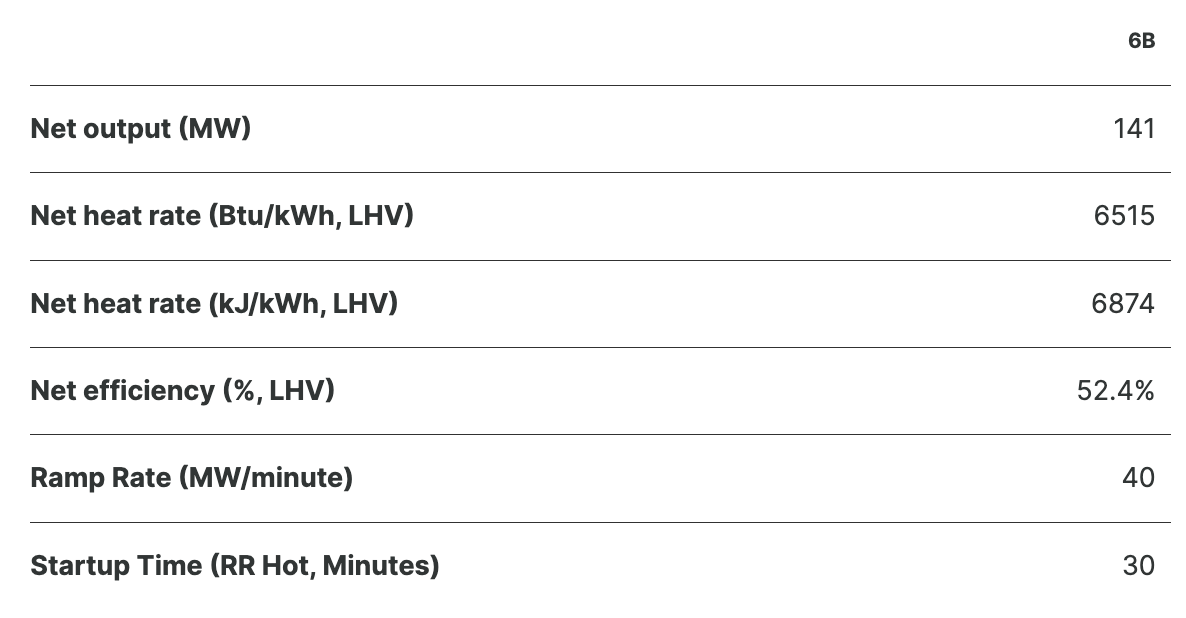

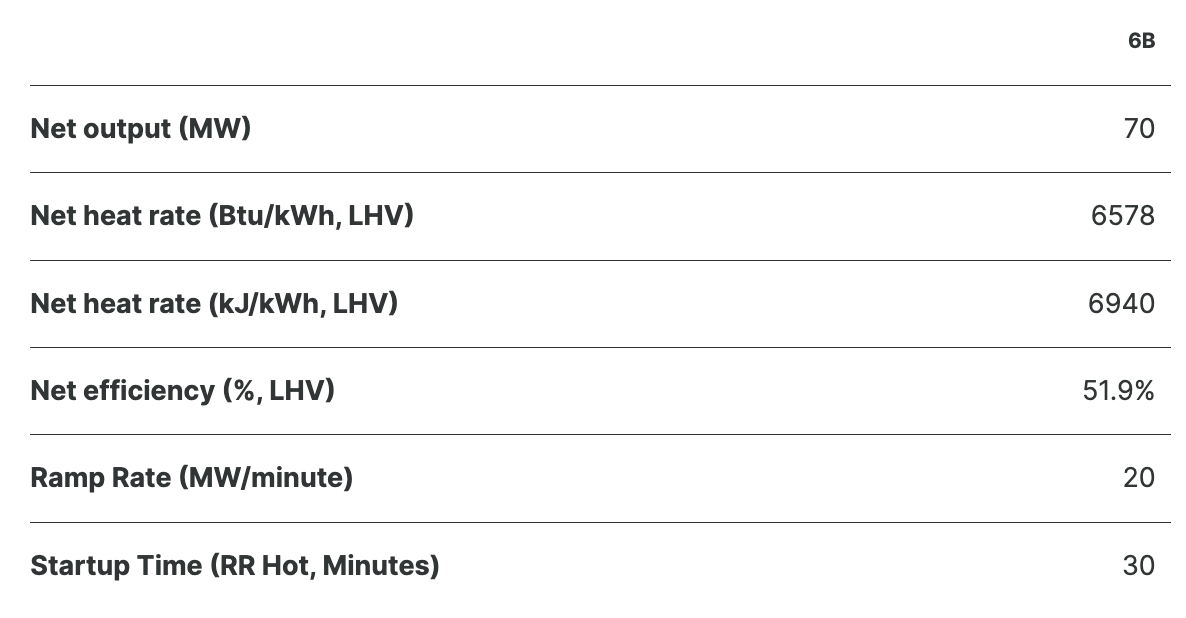

Want more details about the 6B gas turbine? Take a look at the product specifications.
NovaLT™12 gas turbine (13 MW, 50/60 Hz)
Delivering high efficiency and low total cost of ownership in power generation or mechanical drive
Benefits
- 36.8% efficiency in mechanical drive; up to 84% thermal efficiency in combined heat and power
- Flexible operation to 50% of rated speed; ideal in mechanical drive—can start with fully pressurized compressor
- Lower maintenance costs and 35,000 hours MTBM—automapping eliminates seasonal DLN tuning and intermediate boroscopic inspections.
Features
- Rugged, high-performance axial flow compressor
- Single-row annular combustion system for best-in-class low emissions and wide fuel flexibility
- Highest efficiency over the entire power range thanks to variable-geometry, low-pressure turbine nozzle technology
Applications
- Onshore and offshore
- Pipeline, gas storage
- Industrial, and combined head and power
SGT-A05 aeroderivative gas turbine for power generation and mechanical drive
Proven gas turbine technology for higher efficiency and performance
The SGT-A05 gas turbine is based on a proven aeroderivative design. It is flexible, compact and lightweight, making it ideal for decentralised power generation. It offers high efficiency and can start up in just 60 seconds.SGT-A05 gas turbine variants generate electrical power outputs of between 4 and 6 MW for applications such as base load, cogeneration, combined heat and power, mobile power and emergency power. Since its introduction in 1963, over 1,720 SGT-A05 gas turbines have been sold to more than 500 industrial customers in 55 countries, accumulating an impressive 133 million operating hours.
Taurus 70
Taurus 70 PG - Generator Set
The family of Taurus™ gas turbines represents years of intensive development by the engineering and manufacturing groups at Solar and offers many advanced features.
Benefit and Features
- Introduced in 1995
- Leverages Design Experience of Taurus 60
- High Efficiency, Simple-Cycle Gas Turbine
- Designed for Long-Life Industrial Applications
- Low Dry Emissions (Optional)
- Designed-In Maintainability
- Depending on the operating conditions, an extended time between overhaul is available.
